Features
· Suspensions& anti-tip wheels
· Adjustable seat back
+86-(0)512-82283871
Dimensions(L×W×H) |
980(L)×600(W)×1180(H)mm |
Max Forward Speed |
8km/h(5mi/h) |
Max Driving Gradient |
10° |
Max Driving Range |
30-40KM(19-25Miles) |
Weight Capacity |
120kg(265lbs) |

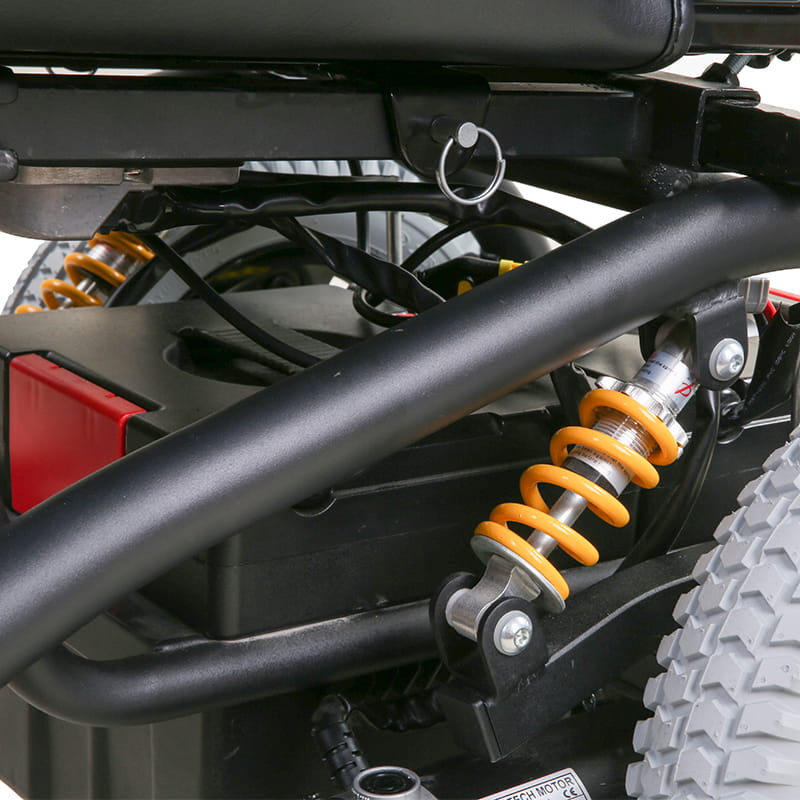

Suspensions |
Rear |
Tire Sizes |
8"x2.5"(Front) 14"x3"(Rear)
|
Brake System |
Electromagnetic Brake |
Batteries |
Lead-acid 12V40AH*2pcs |
Charger |
DC24V5A AC115-230V |
Charging Time |
6-8h |
Motor |
24V/320W*2pcs(Taiwan) |
Motor Controller |
24V/50A(PG from UK) |
Heaviest Part |
56kg(123lbs) |
Back lifting/lowering: flexible adjustment to meet diverse needsThe back lifting/lowering function is a highlight in the design of the travel power wheelchair. It allows users to adjust the back through simple operations. This function is undoubtedly a great boon for users who need to sit for a long...
The art of space layout: maximize the use of every inch of spaceThe design team of the medium mobility scooter knows that creating the most spacious riding environment within the limited body size is the key to improving the user experience. Therefore, they adopted a variety of innovative design tec...
1. Suspension system: absorb vibration and improve comfortThe suspension system is an important part of a heavy-duty power wheelchair, which is directly related to the wheelchair's ability to absorb road vibrations during travel. An excellent suspension system can effectively slow down or eliminate ...
